Using high-quality valve guides in your cylinder head is essential for longevity, reliability, and performance. Integrated Engineering valve guides are designed to directly replace OEM valve guides, featuring correct outside diameter measurements to provide the ideal press-fit into your cylinder head.
Valve guides are small cylindrical bushings that press into a cylinder head, giving valves a place to reciprocate with minimal friction and wear. They facilitate valve movement and keep them perfectly centered on the valve seats. Lastly, they allow heat to transfer from the combustion chamber into the cylinder head, which is then cooled by engine coolant.
When it comes time to rebuild your cylinder head, it's very likely that you will find the OEM valve guides worn beyond wear limits. As mileage begins to add up, the inside diameter of your valve guides will wear, causing excessive clearance with the valve stems. Even on engines that have no modifications, it is common to see oil consumption, irregular valve wear, or even complete valve failure if the guides have become excessively worn.
Integrated Engineering performance valve guides work as direct OEM replacements while offering several unique features to improve performance and increase longevity. IE valve guides are manufactured in our CNC machine shop from a proprietary bronze alloy and feature ultra-high concentricity for exact valve placement. This ensures that the head of the valve sits in the exact center of the seat, removing any possibility of leaks. Our premium alloy improves wear resistance, reduces friction, and improves heat transfer. By increasing thermal conductivity by 10%, you can expect extended valve life and reduced wear on valvetrain components. To increase airflow through the intake and exhaust ports, we have designed our valve guides with an aerodynamic tip that does not protrude into the airstream like the factory units. IE valve guides are designed to directly replace the factory guides and work well for all rebuilds, whether it be an OEM refresh or a complete race engine build!

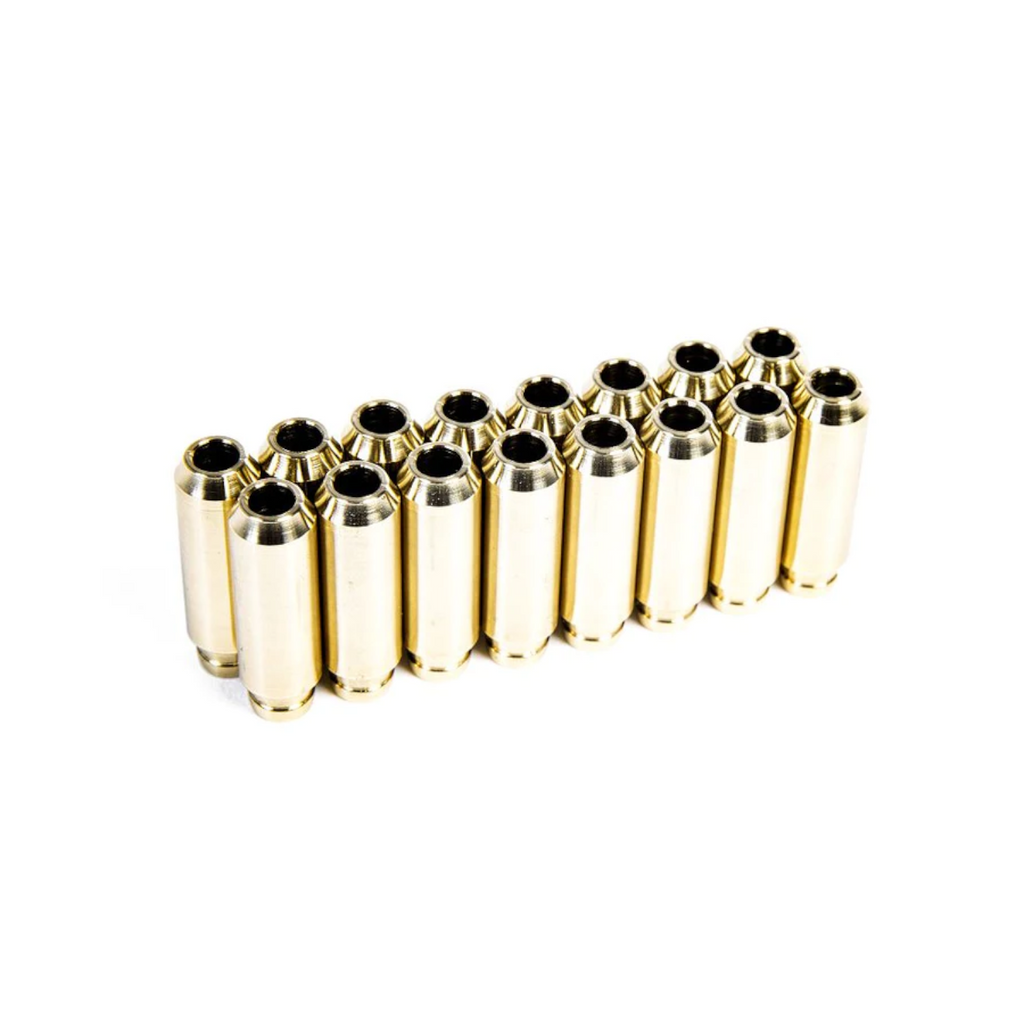

IE Performance valve guides are sold individually. VW/Audi 2.0T EA888 Gen 3 TSI engines require 16 valve guides total, 8 exhaust and 8 intake for a complete valve guide replacement job. All IE valve guides are sold with an undersized inside diameter. This allows the engine builder to ream the guides after installation and set the stem-to-guide clearances exactly where they need to be since different valve materials require different clearances. This feature eliminates any guesswork associated with replacing the guides. To make installation simple, we machine a small centering lip on the tip of each valve guide, which allows them to press into the head straight and consistently.
- OEM outside measurements for a direct OEM replacement
- Engineered, designed, and manufactured in the USA
- Ultra-high concentricity for exact valve
- Proprietary bronze alloy improves heat transfer
- Improves wear resistance and reduces friction
- Increased thermal conductivity extends valve life
- Aerodynamic tip increases airflow to intake/exhaust ports
- Integrated Engineering Performance Valve Guide (SOLD INDIVIDUALLY)
May Fit Selected Vehicle
Refer to chart for vehicle fitment
No Vehicle Selected
Select vehicle or refer to chart
|8V A3 1.8L Turbo I4
|8V A3 2.0L Turbo I4
|8V S3 2.0L Turbo I4
|B7 Passat 1.8L Turbo I4 [GEN 3]
|B7 Passat 2.0L Turbo I4 [GEN 3B]
|B8 Passat 2.0L Turbo I4 [GEN 3B]
|MK1 Arteon 2.0L Turbo I4
|MK1 Atlas 2.0L Turbo I4
|MK2 Beetle (5C) 1.8L Turbo I4 [GEN 3]
|MK2 Beetle (5C) 2.0L Turbo I4 [GEN 3]
|MK2 Tiguan (5NA) 2.0L Turbo I4 [GEN 3]
|MK3 TT (8S) 2.0L Turbo I4
|MK3 TTS (8S) 2.0L Turbo I4
|MK6 GLI (1B) 2.0L Turbo I4 [GEN 3]
|MK6 Jetta (1B) 1.8L Turbo I4 [GEN 3]
|MK7 Golf 1.8L Turbo I4
|MK7 Golf Alltrack 1.8L Turbo I4
|MK7 Golf Sportwagen 1.8L Turbo I4
|MK7 GTI 2.0L Turbo I4
|MK7 R 2.0L Turbo I4
