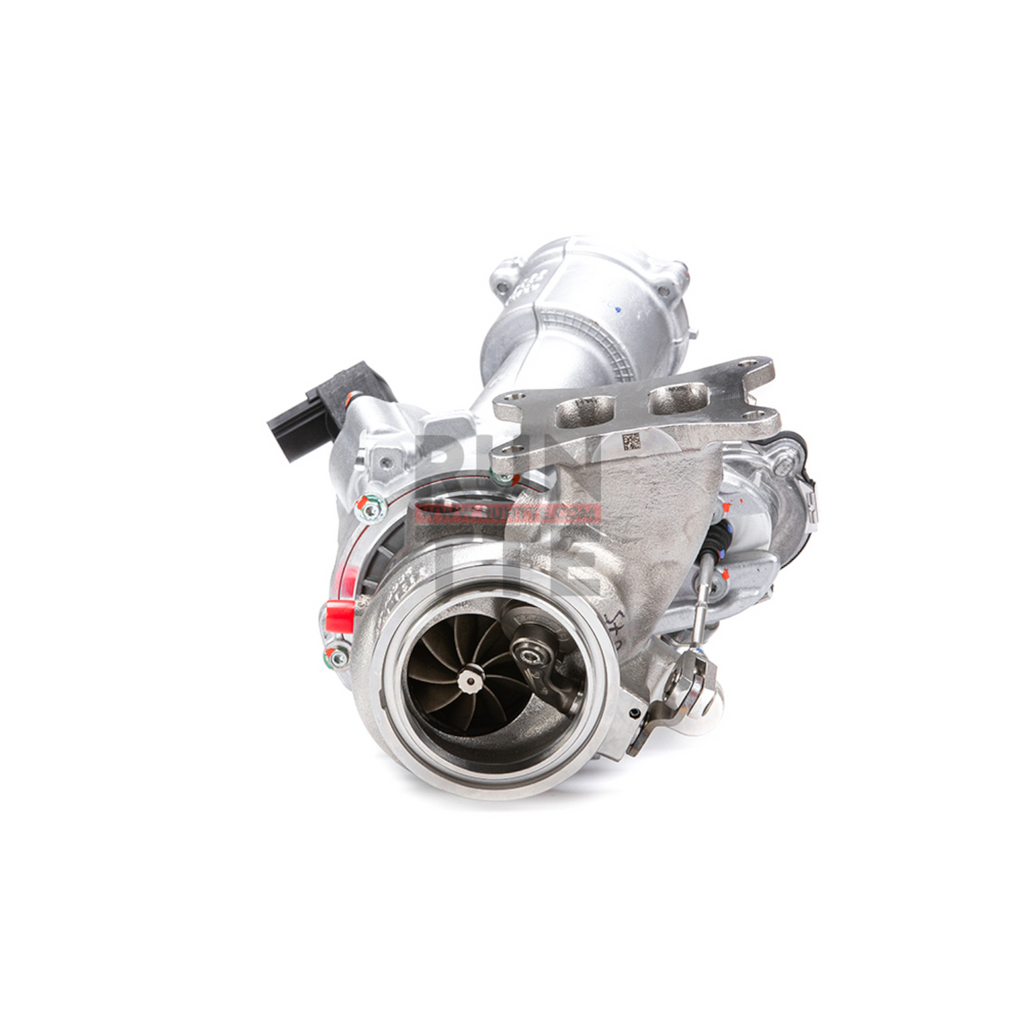

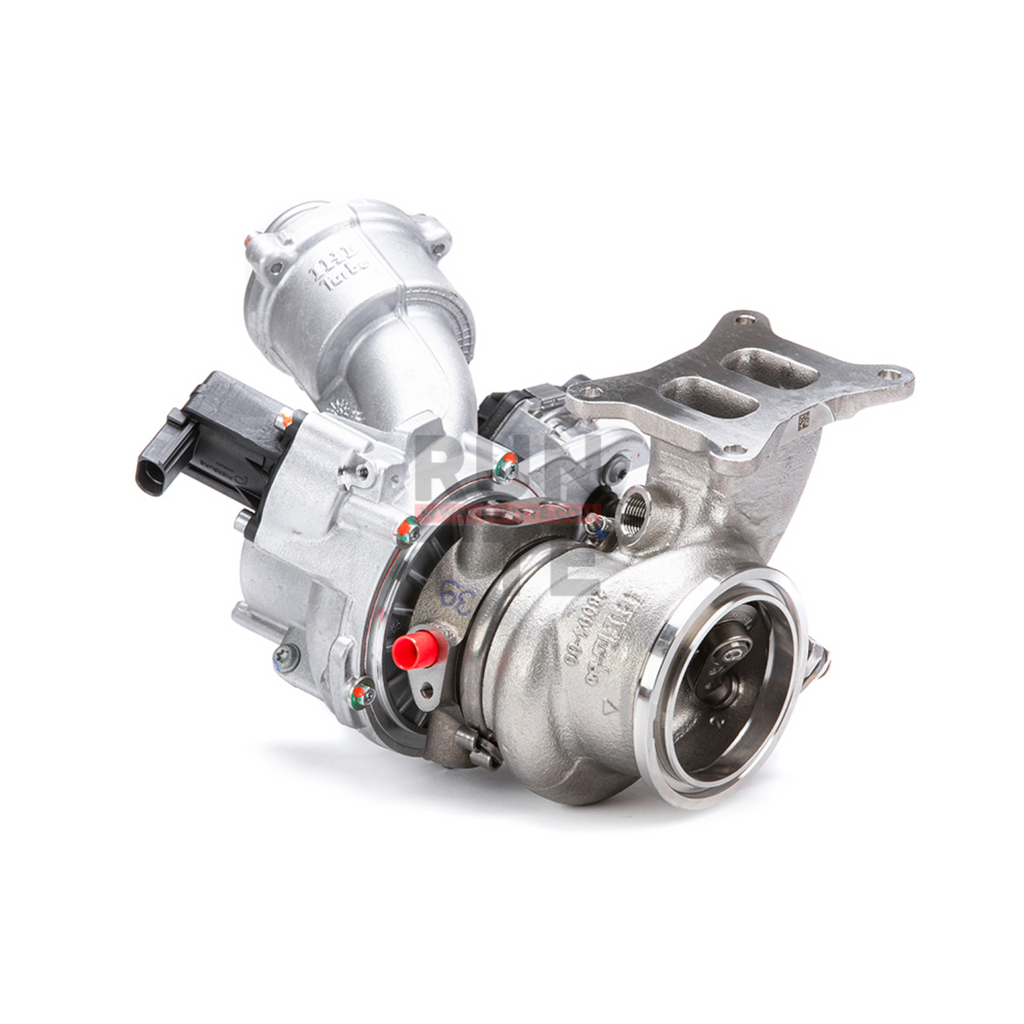

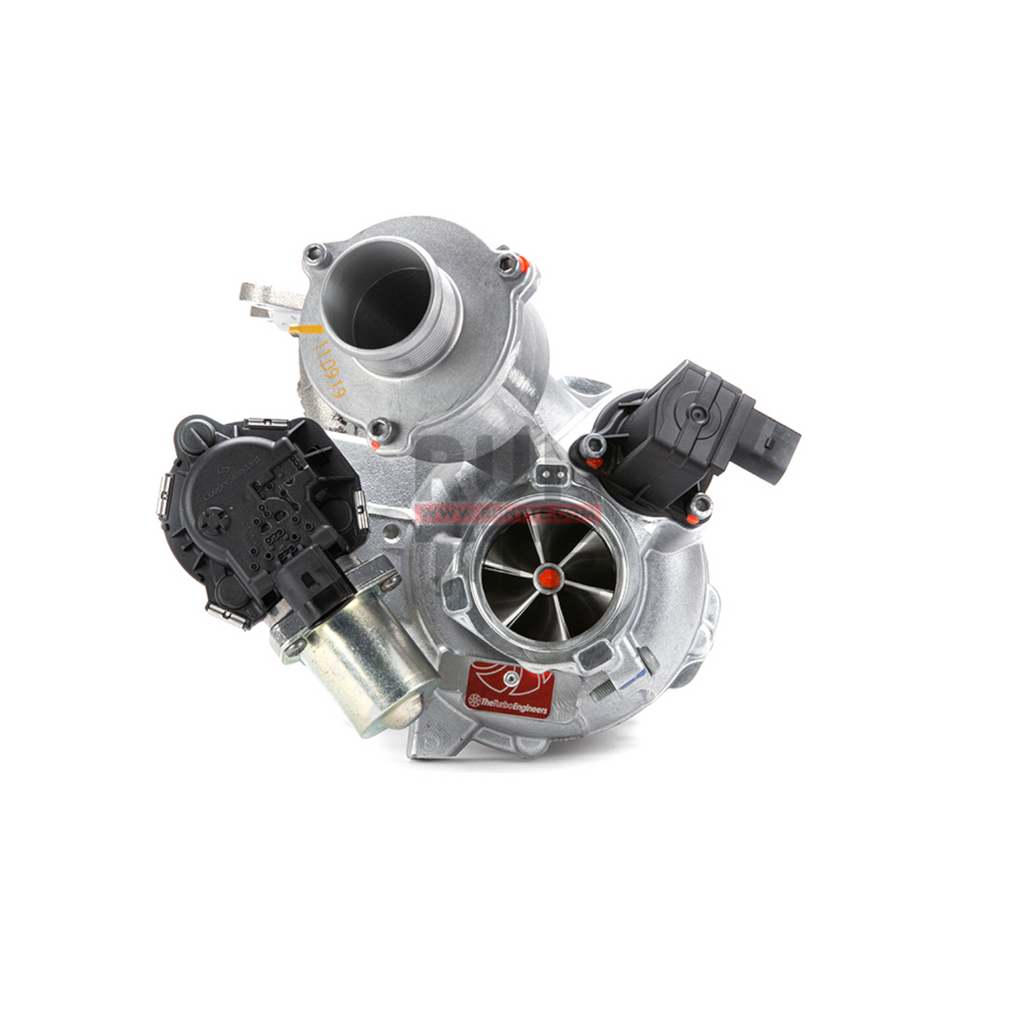

TTE485 is our very latest hybrid performance upgrade turbocharger based on the Original IHI Hitachi IS20 turbocharger for the 3rd generation VAG 2.0TSI found in the VW Golf 7 GTI and many others. The IS20 turbo hybrid that thinks its an IS38 hybrid. TTE485 Offers Stage 3 IS38 hybrid power, with great spool and response. We feel this is the best performing sub-500hp IS20 hybrid available on offer today.
To construct a TTE485 we change the original compressor and employ a far larger and more efficient billet wheel with extended tip technology and mill the compressor cover to the optimum gap to match the new compressor profile. We replace the original IS20 turbine and CNC mill the turbine housing to install a larger lightweight 9 blade turbine for greater gas flow. We also replace the original thrust bearing for the TTE upgrade 360 deg that is made in-house.
We also fit our TTE CNC silencer delete. Modifying the turbo discharge silencer, removing the original baffle internals and fitting a new straight-through section, removing any restriction and its function as a noise-canceling device, and so improving the flow and enhancing the sound. The 9 Blade TTE turbine is a special turbine designed by TheTurboEngineers. Advantages are greater gas flow, reducing back pressure, and lowering exhaust gas temperatures, allowing safer higher boost levels. This turbine is extremely light in mass so giving a reduced moment of inertia, meaning fast spool up for the size.
Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled, and then the CHRA are dynamically balanced, but this time depending on the application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with a serial numbered balance test result document.
If you chose to upgrade your existing turbo, our sales staff will reach out to you after placing the order to arrange shipping and discuss timeframe as well as other details. Please note that miscellaneous charges for logistics and VAT may accrue.
Features:
- Original Genuine IS20 IHI turbocharger as the base part
- Original Genuine actuator
- Original Genuine diverter valve
- TTE Billet Milled compressor 6+6 Blade with Extended Tip
- TTE High-Flow Low- Mass 9 Blade Turbine
- TTE CNC milled OEM silencer delete
- TTE Reinforced bearing pack
- Plug & Play installation (on early model golf 7r 2014-16 the actuator lead might need an extension)
- 480+HP Proven on 102Ron (450PS on 99Ron proven)
- Proven TheTurboEngineers quality
- Single parts finely balanced then components assembled and core high-speed VSR balanced
- Supplied with a balance test result document
- Software recalibration is required
- Made in Germany
